Roth Mobiler 2-Handgriff 21cm

Only the Roth MOBELI mobile grab handles permanently measure the vacuum level and transmit it to the safety display. This allows the user to see at a glance whether the holding force is sufficient and safe use is guaranteed. If the safety indicator appears, the suction disc must be reattached and the adhesive force is optimally guaranteed again. All MOBELI grab rails have been successfully tested by TÜV Süd in accordance with ISO 17966:2016. In the context of the new test, the load capacity is now specified with the maximum user weight.

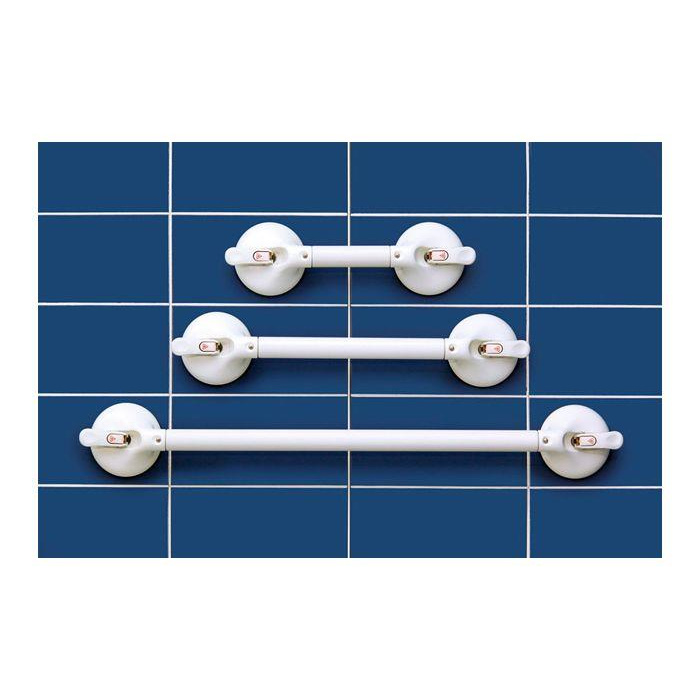

This grab rail in various fixed grab lengths is held in place without fixed installation using extremely strong vacuum suction pads. Very easy and quick to place and remove. The surface must be made of smooth, porous material, e.g. tiles. Required tile size: at least 13 x 13 cm.

Dimensions: Suction disc: Ø 12 cm. Intermediate dimension between wall and handle: 3.4 cm. Max. Max. user weight for grip length 21 cm: 100 kg, grip length 35 cm and 65 cm: 95 kg.

Description
Handle bar material: impact-resistant polyvinyl chloride. Suction cup housing: polyamide (PA 6). Suction disc: natural rubber. All metal parts: Stainless steel.
Suction disc dimensions: Ø 12 cm
Required tile size: 14 x 14 cm.
Do not install over a tile joint.
